Description

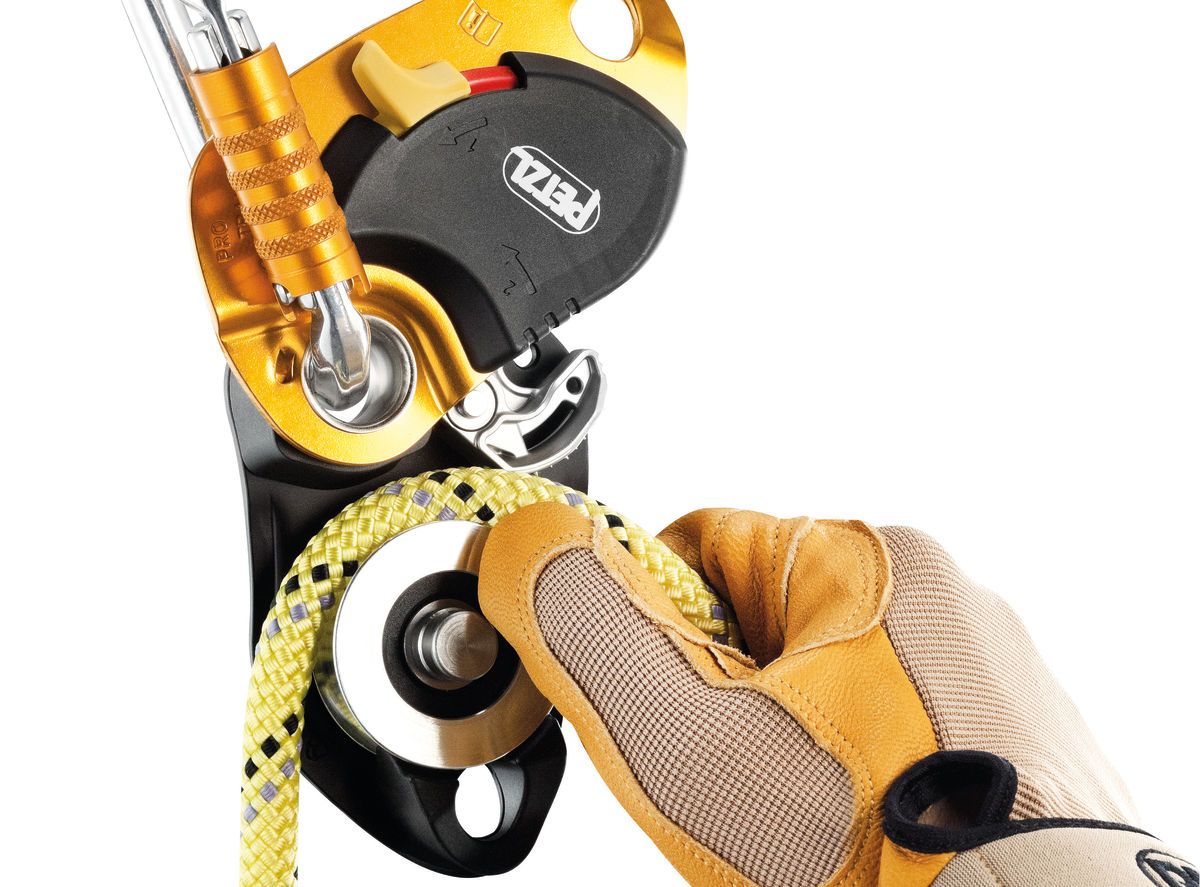

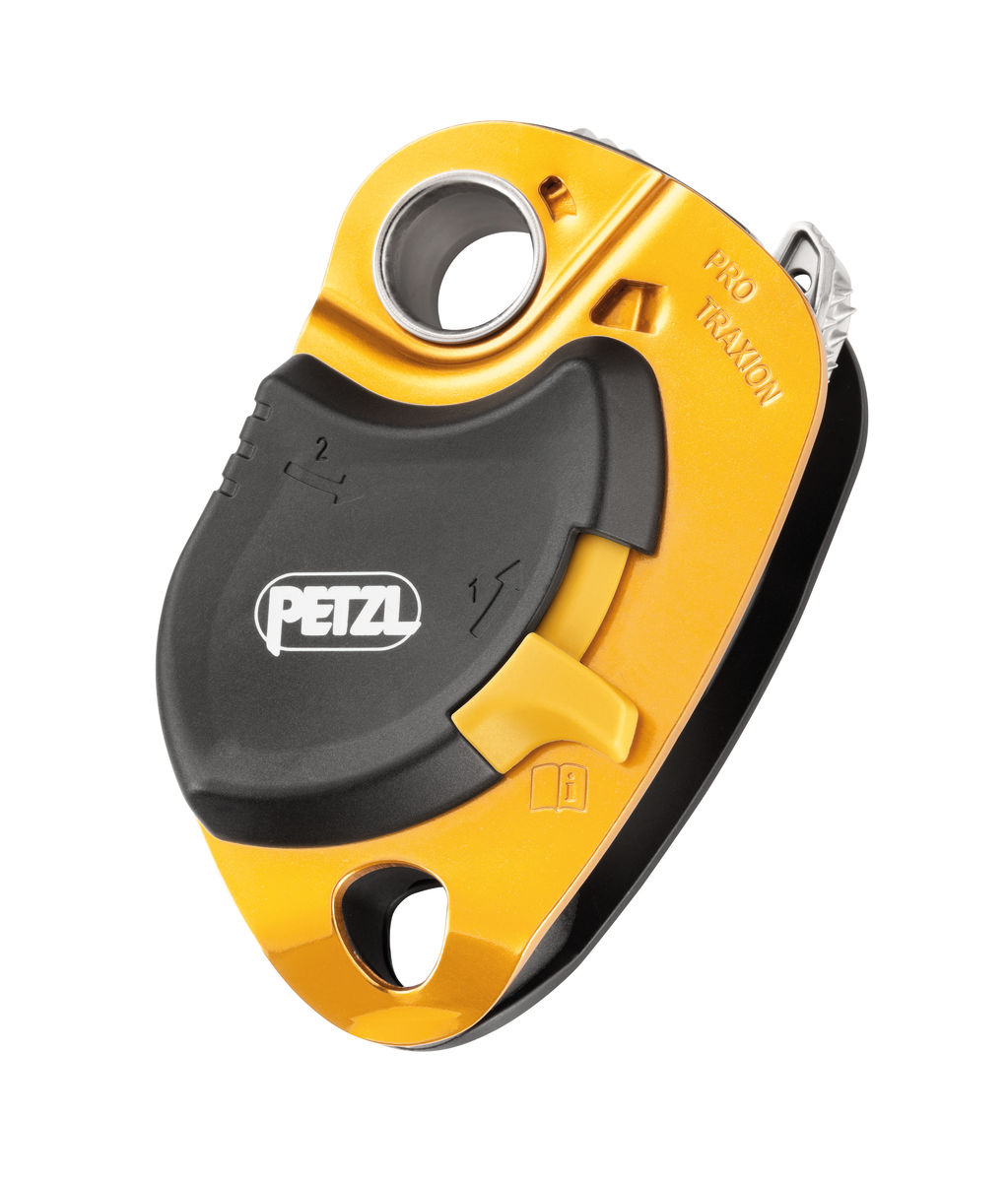

• Loss-resistant pulley:
  – allows a rope to be installed when the pulley is connected to the anchor
• Well suited for hauling heavy loads:
  – large diameter aluminum sheave mounted on sealed ball bearings for excellent efficiency
  – side plate locks when loaded and prevents opening of the pulley during use
• Versatile:
  – lower connection point for creating different types of hauling systems
  – toothed cam with self-cleaning slot optimizes performance under any conditions: frozen or dirty ropes…
  – may be used as simple pulley by locking the cam in the raised position

Specifications

• Weight: 265 g
• Certification(s): CE EN 567, NFPA 1983 Technical Use, EAC
• Material(s): aluminum, stainless steel, nylon
• Min. rope diameter: 8 mm
• Max. rope diameter: 13 mm
• Sheave type: sealed ball bearings
• Sheave diameter: 38 mm
• Maximum working load: 2 x 2,5 = 5 kN
• Breaking strength – pulley: 11 kN x 2 = 22 kN
• Maximum working load – rope clamp: 2.5 kN
• Breaking strength – rope clamp: 4 kN
• Efficiency: 95 %
